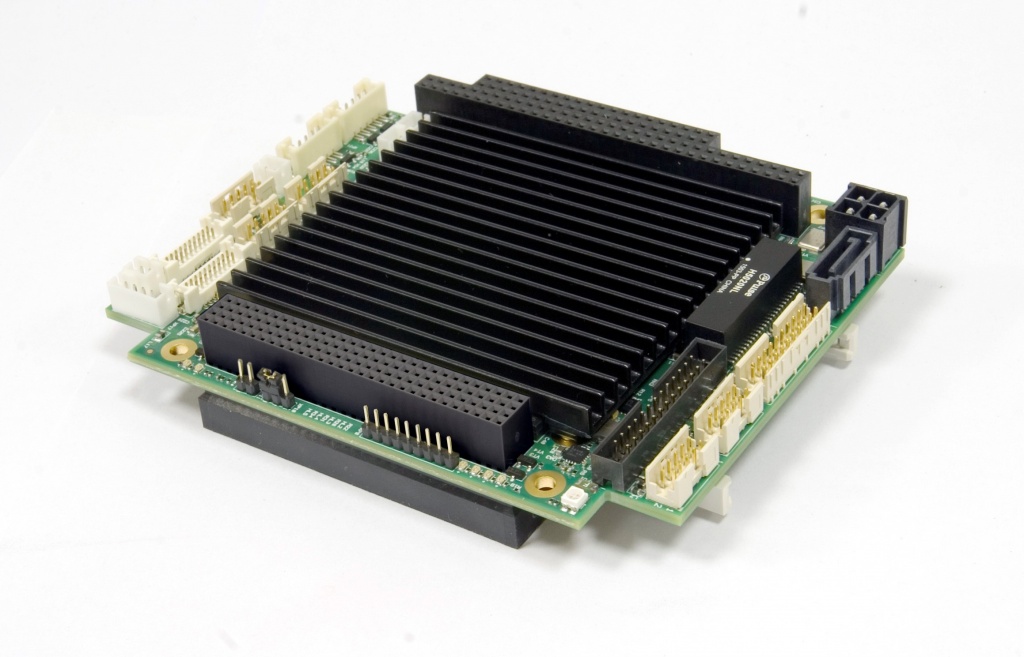

CPC310
PC/104-Plus E38xx Based SBC
CPC310
• CPU Intel Atom E38xx ( 1.33–1.46 GHz)
• RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
• Integrated video controller: 2D/3D – accelerator; VGA output
(resolution up to 2560x1600 60GHz); 2xLVDS ports
(resolution up to 1600x1200 60GHz 18/24bit);
• USB ports: Support of USB 1.1 (12 Mb/sec), USB 2.0 (480 Mb/sec);
Connection up to 4x devices
• PS/2 keyboard and mouse port
• Compatibility with OS: Linux, QNX; Microsoft Windows Embedded
Standard 8; Microsoft Windows Embedded Standard 7
• Power supply: +5 V
• Operating temperature range: from –40°C up to +85°C
• RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
• Integrated video controller: 2D/3D – accelerator; VGA output
(resolution up to 2560x1600 60GHz); 2xLVDS ports
(resolution up to 1600x1200 60GHz 18/24bit);
• USB ports: Support of USB 1.1 (12 Mb/sec), USB 2.0 (480 Mb/sec);
Connection up to 4x devices
• PS/2 keyboard and mouse port
• Compatibility with OS: Linux, QNX; Microsoft Windows Embedded
Standard 8; Microsoft Windows Embedded Standard 7
• Power supply: +5 V
• Operating temperature range: from –40°C up to +85°C
Overview
Downloads
Order Info
Sales & technical support
CPC310 represents an embedded single-board computer in PC/104- Plus format designed for missioncritical applications.
Datasheet
(PDF 0.7 MB)
CPC310ver.02.pdf
(PDF 4.88 MB)
| CPC310 - 01 |
4 GB RAM, 8 GB NAND, Intel Atom E3825 (Dual Core) |
| CPC310 - 02 |
2 GB RAM, 4 GB NAND, Intel Atom E3815 (Single Core) |
