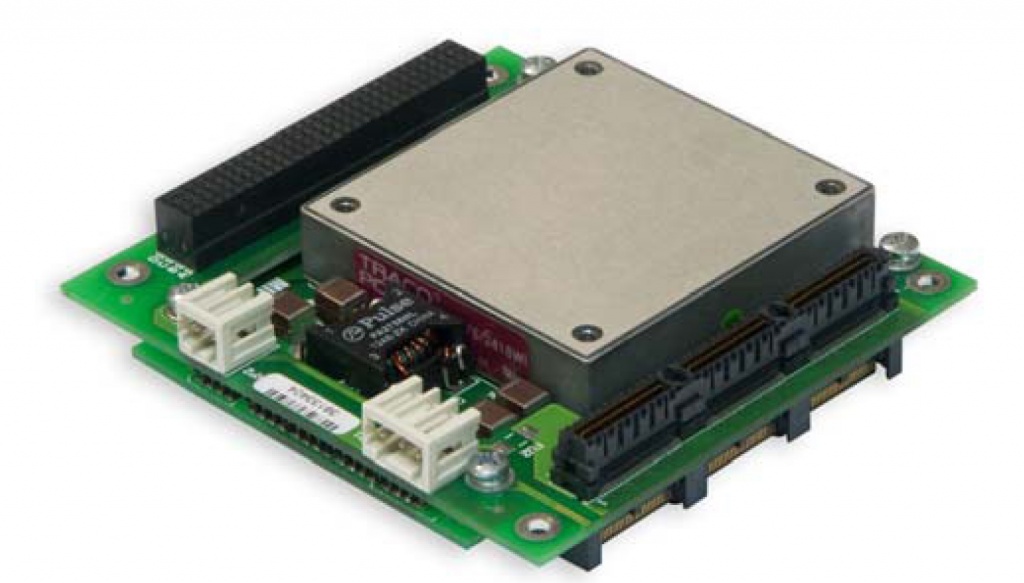

PS352
StackPC-PCI Power Supply Module
PS352
• StackPC-PCI form-factor;
• Input voltage: 9–36 V; Output voltage: 48 V ± 5%;
• Module’s power supply without load: 2.4 W;
• Maximum output power: 75 W;
• Galvanic isolation input/output: 1500 V;
• Overload and overheating protection;
• Operating temperature range: from –40°С to + 85°С
• (with the reduction of output power)
• Vibration resistance:5g, Single shock resistance: 100g,
• Multiple shock resistance: 50g;
• MTBF: 500 000;
• Dimensions, no more than: 969122.5 mm;
• Weight: no more than 185 g.
• Input voltage: 9–36 V; Output voltage: 48 V ± 5%;
• Module’s power supply without load: 2.4 W;
• Maximum output power: 75 W;
• Galvanic isolation input/output: 1500 V;
• Overload and overheating protection;
• Operating temperature range: from –40°С to + 85°С
• (with the reduction of output power)
• Vibration resistance:5g, Single shock resistance: 100g,
• Multiple shock resistance: 50g;
• MTBF: 500 000;
• Dimensions, no more than: 969122.5 mm;
• Weight: no more than 185 g.
Overview
Downloads
Order Info
Sales & technical support
This Power Supply Module is implemented in StackPC-PCI form-factor. The device is
optimally suited for distributed supply systems based on the technology of power supply
transfer via Ethernet - PoE (Power over Ethernet) networks, made for operation in harsh
environments.
Datasheet
(PDF 0.22 MB)
UM_PS352__v1.4_.pdf
(PDF 0.77 MB)
| PS352 - 01 |
StackPC-PCI form-factor, input voltage: 9–36 V, output voltage: 48 V ± 5%, maximum output power: 75 W, galvanic isolations input/output: 1500 V, overload and overheating protection, installed StackPC and PCI connectors |
| PS352 - 02 |
StackPC-PCI form-factor, input voltage: 9–36 V, output voltage: 48 V ± 5%, maximum output power: 75 W, galvanic isolations input/output: 1500 V, overload and overheating protection, no StackPC and PCI connectors |
| Options |
\Conformal coating is available for all module versions |
