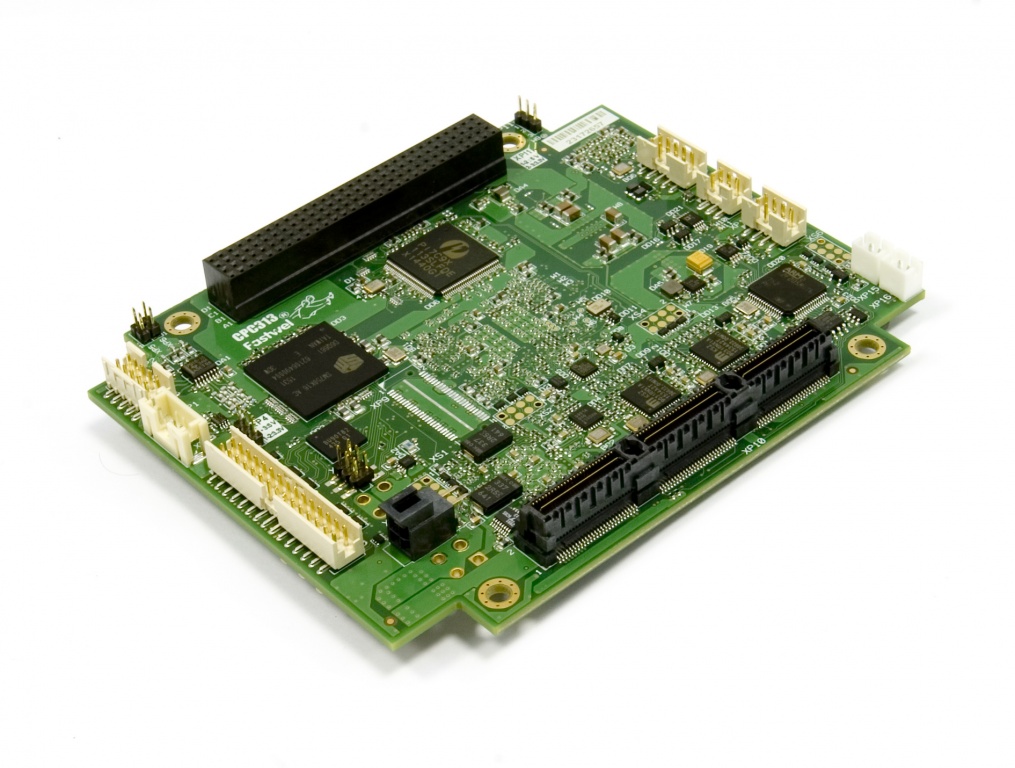

CPC313
Embedded Single-Board Computer in StackPC-PCI form-factor
CPC313
- CPU: Baikal-T1, MIPS32 P5600 core with 900 MHz, 2 physical cores
- DDR3-1600 SDRAM 4 GB, soldered, with ECC support (8 bit)
- Flash drive: up to 16 GB
- StackPC extension connector
- PCI/104 extension connector
- Real-time clock with integrated lithium battery 3V
- Watchdog timer
- Operating temperature: 40°С … + 85°С
- Weight: no more than 200 g
- Software compatibility: Linux (Debian 7.x)
Overview
Downloads
Order Info
Sales & technical support
CPC313 is a highly-integrated and power-efficient solution on MIPS32 platform designed for the use in real-time systems, manufacturing control, data acquisition and processing systems for harsh environments and mission-critical applications.
Datasheet
(PDF 0.39 MB)
| CPC313 – 01 |
CPU Module, Baikal-T1 CPU MIPS32 P5600 core 900 MHz, DDR3-1600 SDRAM 4 GB, Linear stereo input / output, Support of USB 1.1, USB 2.0 (HS, FS, LS); Power supply voltage: +5 В ± 5% |
| Available options: | |
| \COATED - Conformal coating | |
| \LNX – Linux (Debian 7.x) | |
