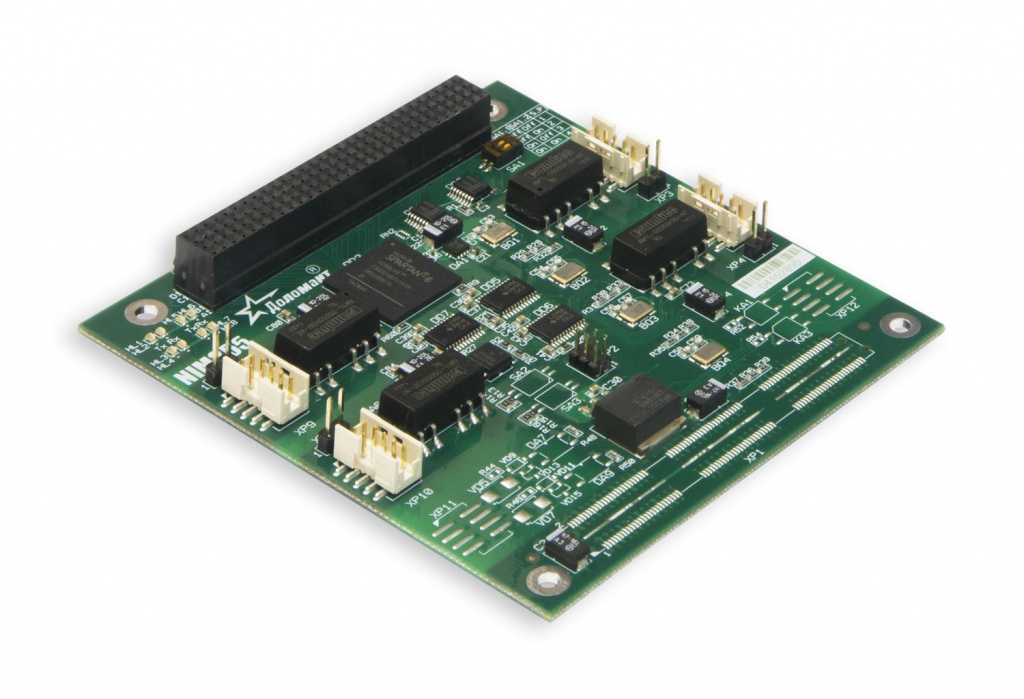

NIM355
StackPC-PCI Interface Module
NIM355
• PCI System Bus: 32 bit/33 MHz
• 4×CAN channels, 4×Digital Input Channels,
4×Digital Output Channels
• Compatibility with OS: Windows XPe, Linux 2.6.x, QNX 6.5
• Dimensions: no more than 90,2×95,9×23,5 mm
• Weight: no more than 120 g.
• Operating temperature range: –40…+85°С
• Power supply: power supply voltage of +5 V ± 5%,
and current consumption: no more than 300 mA
• MTBF: no less than 170 000 hours
• 4×CAN channels, 4×Digital Input Channels,
4×Digital Output Channels
• Compatibility with OS: Windows XPe, Linux 2.6.x, QNX 6.5
• Dimensions: no more than 90,2×95,9×23,5 mm
• Weight: no more than 120 g.
• Operating temperature range: –40…+85°С
• Power supply: power supply voltage of +5 V ± 5%,
and current consumption: no more than 300 mA
• MTBF: no less than 170 000 hours
Overview
Downloads
Order Info
Sales & technical support
NIM355 Interface Module is implemented in accordance with the StackPC-PCI standard and is designed for the use in embedded systems with CAN networks and represents a 4-channel CAN-interface module, which makes it possible to additionally connect up to 4 digital I/O lines and 4 digital output lines.
Datasheet
(PDF 0.52 MB)
| NIM355-01 |
4×CAN, 4×DI, 4×DO. The module contains a full set of interfaces and functional elements |
| NIM355-02 |
4×CAN. Module’s version has no digital input and output, as well as no StackPC connector |
| Options: | |
| \ COATED |
Conformal coating |
