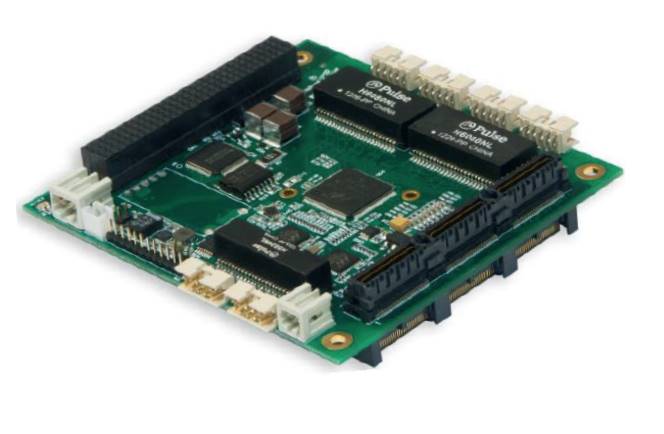

NIM354
Network module in StackPC-PCI form-factor
NIM354
• StackPC-PCI form-factor
• Integrated uncontrolled switch for 7 Ethernet channels
• QoS IEEE 802.1p, IPv4, IPv6, 4096 VLAN IDs with three safety levels of the 802.1Q standard
• PoE PSE 4 ports with galvanic isolation from other circuits, corresponding to IEEE 802.3af/at standards and compatible with the devices up to 25 W
• PoE PSE program control via SMBus (libraries for Windows, Linux and QNX
• Integrated uncontrolled switch for 7 Ethernet channels
• QoS IEEE 802.1p, IPv4, IPv6, 4096 VLAN IDs with three safety levels of the 802.1Q standard
• PoE PSE 4 ports with galvanic isolation from other circuits, corresponding to IEEE 802.3af/at standards and compatible with the devices up to 25 W
• PoE PSE program control via SMBus (libraries for Windows, Linux and QNX
Overview
Downloads
Order Info
Sales & technical support
NIM354 Network Module in StackPC-PCI form-factor is designed for the use in data acquisition and processing embedded systems operating in harsh environments and based on the Ethernet TCP/IP interface, with a possibility to connect up to 4x devices with PoE (Power over Ethernet) support.
Datasheet
(PDF 0.24 MB)
NIM354-UM__1.pdf
(PDF 3.54 MB)
| NIM354 - 01 |
2×LAN 1000 Mb/s, 4×LAN 10/100/1000 Mb/s with PoE, 1×MDI LAN 10/100/1000 Mb/s, power supply 5V and 48V |
| NIM354 - 02 |
2×LAN 1000 Mb/s, 4×LAN 10/100/1000 Mb/s, 1×MDI LAN 10/100/1000 Mb/s, power supply 5V |
| NIM354 - 03 |
2×LAN 1000 Mb/s, 4×LAN 10/100/1000 Mb/s with PoE, power supply 36-57V |
