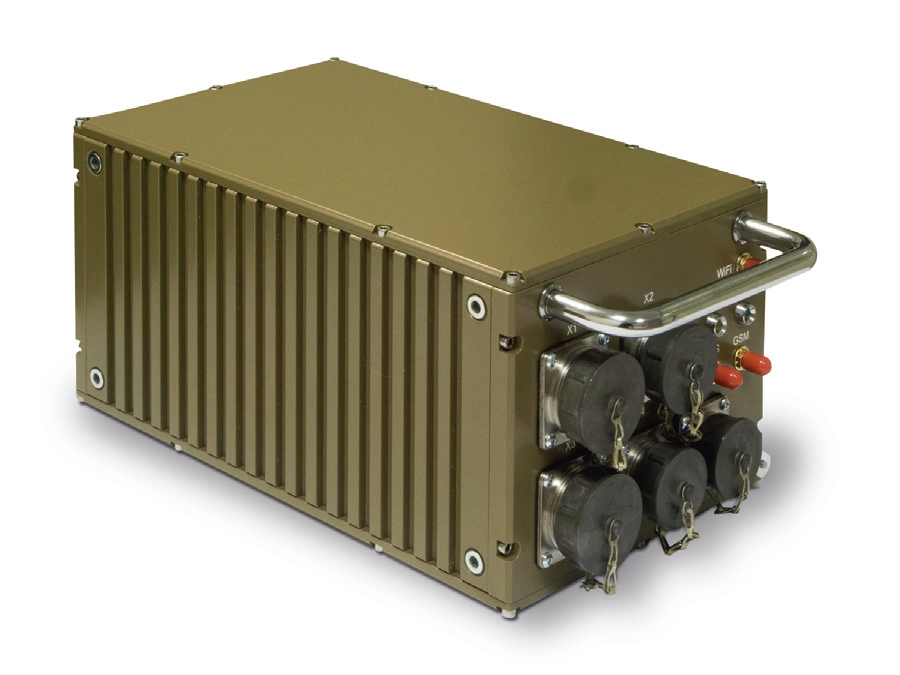

MK308
PC platform for modules in PC/104+ form-factor
MK308
• Compact Flash: 16 GB
• 2xLAN 10/100/1000 Mb/s, 3xUSB 2.0, VGA, 1xRS-232 and
• 4xRS485/422 serial ports, 2xCAN, PS/2, 4xGPIO,
• GLONASS/GPS aerial input, GSM aerial input, WiFi aerial input
• Operating temperature range: –40°C to + 70°C
• OS: FreeDOS, Windows XPe, Linux 2.6, QNX v.6.5
• Vibration/single shocks/multiple shocks resistance: 5g/100g/50g
• IP65
• Installation of up to 7 PC/104+ modules
• 2xLAN 10/100/1000 Mb/s, 3xUSB 2.0, VGA, 1xRS-232 and
• 4xRS485/422 serial ports, 2xCAN, PS/2, 4xGPIO,
• GLONASS/GPS aerial input, GSM aerial input, WiFi aerial input
• Operating temperature range: –40°C to + 70°C
• OS: FreeDOS, Windows XPe, Linux 2.6, QNX v.6.5
• Vibration/single shocks/multiple shocks resistance: 5g/100g/50g
• IP65
• Installation of up to 7 PC/104+ modules
Overview
Downloads
Order Info
Sales & technical support
МК308 is a basic PC platform for modules in PC/104+ form-factor.
The Box PC enables conductive heat transfer to the enclosure and makes it possible to install additional extension modules. The basic hardware configuration contains:
- CPC308-03 (Intel Atom D510 based Processor Module)
- CNM350 Communication and Navigation Module
- NIM351 Interface Module
- NIM353 WiFi Module
- PS351 Power Supply Module
The Box PC has the following operating temperature range: –40°C to +70°C.
MK308 – Rugged Box PC from Fastwel is fully configurable and can be customized according to the specific demands of your application.
The Box PC enables conductive heat transfer to the enclosure and makes it possible to install additional extension modules. The basic hardware configuration contains:
- CPC308-03 (Intel Atom D510 based Processor Module)
- CNM350 Communication and Navigation Module
- NIM351 Interface Module
- NIM353 WiFi Module
- PS351 Power Supply Module
The Box PC has the following operating temperature range: –40°C to +70°C.
MK308 – Rugged Box PC from Fastwel is fully configurable and can be customized according to the specific demands of your application.
Datasheet
(PDF 0.24 MB)
| MK308-01 |
Rugged Box PC, 2×LAN 10/100/1000 Mb/s, 3×USB 2.0, VGA, 1×RS-232 and 4×RS-485/422 serial ports, 2×CAN, PS/2, 4×GPIO, GLONASS/GPS aerial input, GSM aerial input, WiFi aerial input, 11-36 V |
