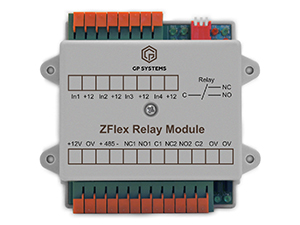

ZFlex Relay Module
ZFlex Relay Module
| Communication Interface | RS-485 |
| Power requirements | 12V±15%, 0,15A |
| Power relay outputs (NC, C, NO) | 2 |
| Supported power of the relays | 12-24VDC, 7A |
|
Maximum number of external devices |
4 |
| Outputs | 2 |
| Discrete inputs | 4 |
| Operating temperature | 0 … +50°C (32 ... 122F) |
| Housing | Plastic |
| Dimensions (H x W x D) |
85 x 87 x 33 mm (3.35 x 3.43 x 1.30 in) |
| Weight | Net: 168 g, gross: 200 g |
| Certification | CE, RoHS2 |
| Warranty | 3 years |
Overview
Sales & technical support
Relay module is designed for handling relays (locks, turnstile). It provides operation with external transducers (door state sensor, exit button) and with signals of security and fire alarms.It could be connected to BioSmart 4-O, BioSmart 4-E,BioSmart WTC2 terminal and BioSmart PV-WTC terminal.
