Unipass Controller

Unipass Controller

    Number of users* 1 000 000
    Number of proximity cards* 1 000 000
    Number of palms veins patterns 300 000
    Identification time by palm veins (1:1000) Less than 2 seconds
    FAR (False Acceptance Rate)** 0,00008 %
    Interface for communication with computer USB, Ethernet, (IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, 1000BASE-TX)
    Power supply 12V±15%, 1A
    Power relay outputs (NC, С, NO outputs) 2
    Power rating of power relays 12-24В, 7А
    Number of readers Up to 2
    Interface to readers USB
    Wiegand outputs 2
    Discrete inputs 4
    Operating temperature 0 to +50 °C
    Case type Laid-on plastic
    Dimensions (W x L x H) 145 х 100 х 40
    Weight Net:300 g; gross:375 g
    Warranty 3 years


    Sales & technical support

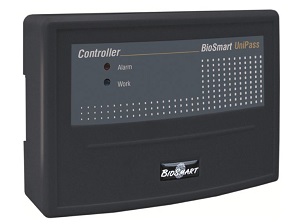

    BioSmart UniPass controller is designed for operation within BioSmart access control network system. It arranges access control by unique biometric structural features of human palm subcutaneous veins via BioSmart PV-WM and BioSmart PV-TS readers. Any relay could be connected to controller outputs, including locks and a turnstile.


    • up to 1 000 000 users in local mode;
    • supports verification modes “palm veins patterns on smart card”, “card + palm veins patterns”;
    • simultaneous connection of BioSmart PV-WM and BioSmart PV-TS readers (up to two devices);
    • Wiegand output interface;
    • handling of two locks or a turnstile.




    * A card code can be assigned to each user.
    ** Calculated value: depends on quality of users’ biometric data.
