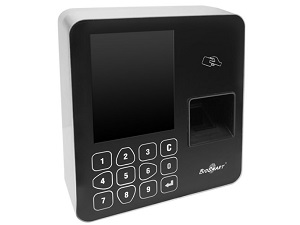

WTC2 Fingerprint Terminal

WTC2 Fingerprint Terminal

    Number of users* 5 000
    Number of proximity cards 5 000
    Number of fingerprint templates 4 500
    Logged events 100 000
    Number of time groups 50
    Match time (1:1000) in local mode, by fingerprints < 970 ms
    Verification time (1:1) < 600 ms
    FAR (False Acceptance Rate) 10-4 – 10-8
    FRR (False Rejection Rate) at FAR=10-5, %** 1
    Fingerprint scanner Optical
    Integrated RFID card reader Em-Marin
    Read range for cards Up to 100 mm
    Screen type TFT, 3.5”, 320 х 240
    Keypad Touch,12 buttons
    Communication interface with computer USB, Ethernet, (IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX)
    Ability of power supply over PoE interface IEEE 802.3af
    Support of Relay module Yes
    WIEGAND I/O 26-40 bits
    Number of discrete inputs 1
    On-board relay 12V, 1A
    Case opening sensor Yes
    Power supply 12V±15%, 0,4A
    Operating temperature 0 to +50 °C
    Case type Laid-on plastic
    Dimensions (W x L x H) 142 х 123 х 41 mm
    Weight Net:320 g; gross: 450 g
    Warranty 3 years


    Sales & technical support

    BioSmart WTC2 terminal is designed for organization of access control and time tracking by fingerprints and RFID cards.


    • 3.5” LCD display;
    • integrated code-punching panel;
    • integrated card reader;
    • support of operation in server identification mode;
    • parameter setting, fingerprint and RFID card enrollment from the screen interface;
    • USB port for configuration;
    • support of custom wallpapers;
    • parameter setting via USB or WEB interface;
    • supports connection to Relay module;
    • power supply over PoE interface.

    Optional Configurations

    • integrated card reader for the proximity cards in Mifare standard;
    • integrated card reader for the proximity cards in HID iClass,
    • HID Prox standards;
    • integrated card reader for the proximity cards in Legic standard.


    * A card code can be assigned to each user.
    ** Calculated value: depends on quality of users’ biometric data.
